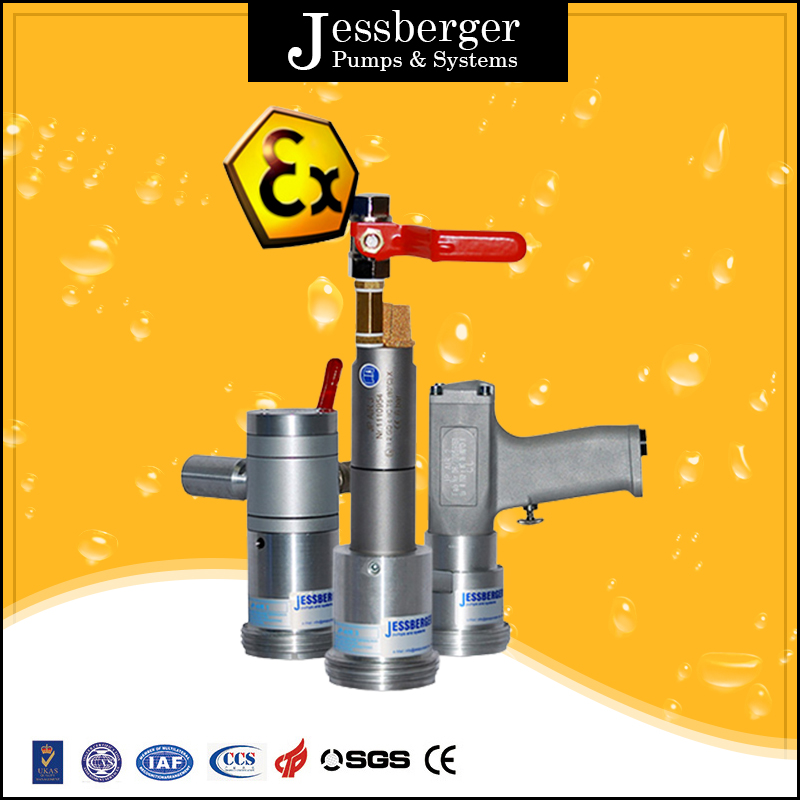

Air operated motors JP-Air 1, -2, -3

Details of product given below

We have a long and proud history givin emphasis to environment social and economic outcomes to deliver places that respond too the complex global forces shaping our future

  • In addition to its durability, the drum pump’s motor is notable for its sleek appearance and user-friendliness. The drive may be used on the go and at rest, making it ideal for use in intermittent settings. The durability and reliability of the motor get ensured by its sturdy construction.
  • In the presence of harsh solvent vapours, the motor housing’s aluminium construction provides excellent chemical resistance.
  • A ball valve controls the air supply and, in turn, the flow rate, allowing the user to choose the desired motor speed.
  • A ball valve and silencer are installed on the air intake of the air-operated motor, allowing for precise regulation of the flow of compressed air and, in turn, the speed at which the motor rotates.
  • The quality air-operated motors come equipped with high-grade devices and a sleek design, compatible to handle any liquid viscosity type. The simple manufacturing of Ceracin Drm Pumps ensures reasonable and hazard-free use.
AIR OPERATED MOTORS FOR DRUM PUMPS, Ceracin
Feature Block Bg2, Ceracin

Know More Specifications Of Product

Operating Data JP-AIR1

Operating data JP-AIR1
Flow rate
(with hose and oval gear meter)
Ø 41 mm up to 78 – 91 l/min (Rotor)*
Ø 41 mm up to 60 – 71 l/min (Impeller)*
Head Ø 41 mm up to 9 – 13 m (Rotor)*
Ø 41 mm up to 13 – 25 m (Impeller)*
Viscosity up to 400 – 600 mPas*
Density up to 1,3*
* All physical data are real measured maximum values.
* Test medium water 20 °C, 2 m pressure pipe 1″, oval gear meter 1″, measured values: ± 5%
.
AIR OPERATED MOTORS FOR DRUM PUMPS 02, Ceracin
Feature Block Bg2, Ceracin

AIR OPERATED MOTORS FOR DRUM PUMPS

300 Watt, max. operating pressure 6 bar

We have a long and proud history givin emphasis to environment social and economic outcomes to deliver places that respond too the complex global forces shaping our future

  • The air motor may get used with a variety of media pump tubes that are quick and simple to swap out.
  • Air-driven drum pump motors are ideal for non-consecutive, brief usage and may get used in portable and fixed designs.
  • When pumping or transferring flammable material from varying dangerous situations or while operating in hazardous locations, you may have complete peace of mind with the drum pumps equipped with air-operated motors and conductive stainless steel pump tubes.
  • Pump tubes constructed of conductive stainless steel and air-operated motors must be ATEX-approved for usage in hazardous environments or for pumping combustible material.
